Payment Gateway System Design Handbook Notes

Payment Gateway System Design Handbook - Complete Notes

This handbook provides a comprehensive overview of payment gateway system design, covering essential concepts for software engineers, particularly those preparing for SDE interviews or working in backend development.

Key Topics Covered:

• Payment Flow: Understanding the end-to-end process from customer payment initiation to merchant settlement.
• High-Level Architecture: An architectural overview of how a payment gateway system is structured.
• Database Design: Considerations for designing the database schema to support payment gateway operations.
• API Design: Principles for designing robust and secure APIs for payment gateway interactions.
• Security & PCI-DSS: Ensuring compliance with Payment Card Industry Data Security Standard (PCI-DSS) and implementing robust security measures.
• Fraud Prevention: Strategies and techniques to detect and prevent fraudulent transactions.
• Scalability & Reliability: Designing systems that can handle high volumes of transactions and remain available.
• Monitoring & Observability: Implementing systems to monitor performance, detect issues, and gain insights.
• Caching & Performance: Techniques to optimize system performance through caching and other methods.
• Best Practices: General best practices for building and maintaining payment gateway systems.
• Interview Tips: Guidance for technical interviews related to system design.

Detailed Breakdown of Concepts:

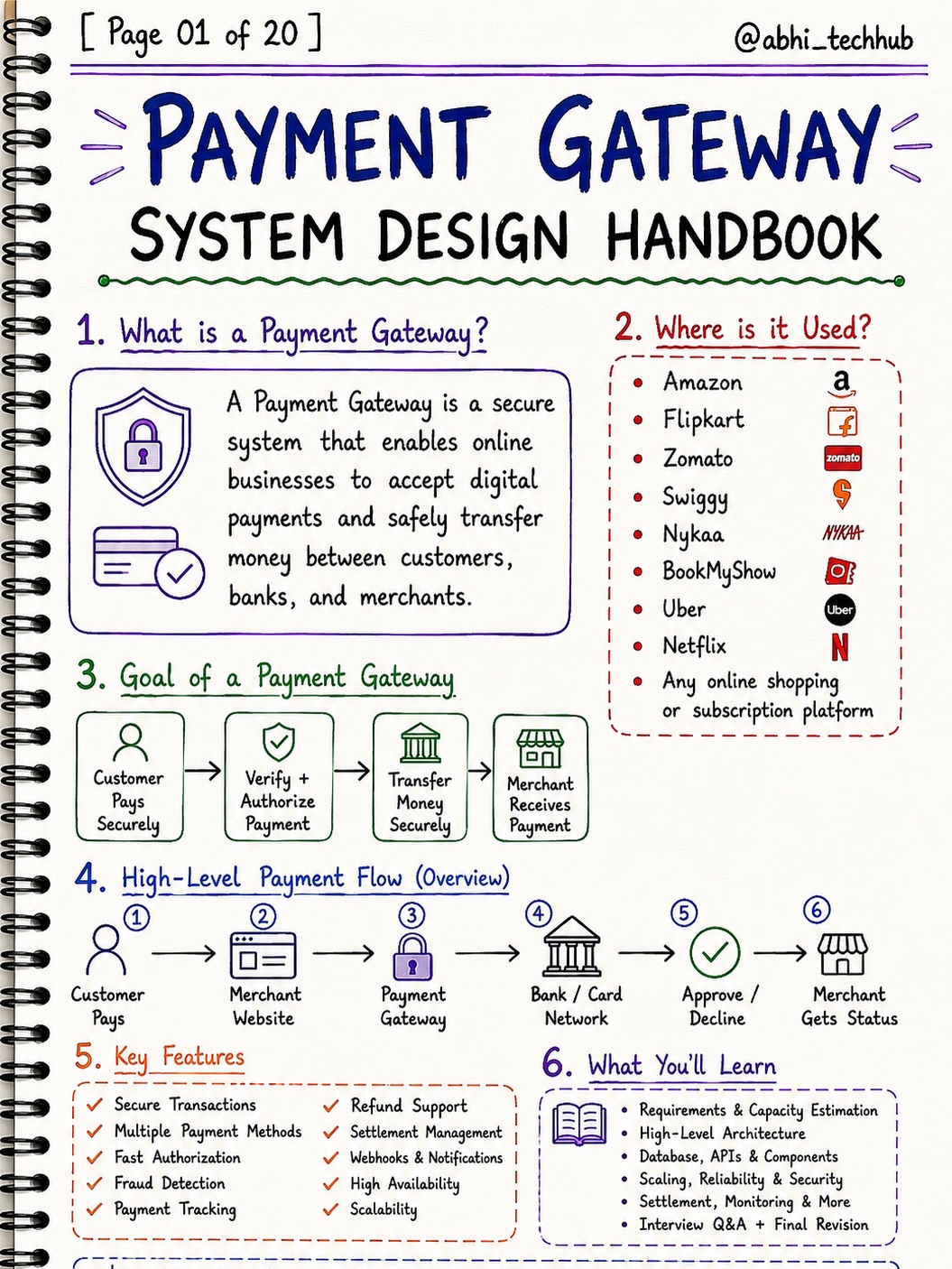

1. What is a Payment Gateway?

A system that enables online businesses to accept digital payments and safely transfer money between customers, banks, and merchants.

2. Where Used?

• Online Shopping
• Subscription Platforms

Examples of Companies Using Payment Gateways:

• Nykaa
• Amazon
• Flipkart
• Zomato
• Swiggy
• BookMyShow
• Uber
• Netflix

3. Payment Flow (Overview)

• Customer Pays: Customer initiates payment on the merchant website.
• Merchant Website: Sends payment details to the Payment Gateway.
• Payment Gateway:
  • Creates an order.
  • Authenticates the user.
  • Creates a payment session.
  • Communicates with the Bank Card Network for authorization.
  • Receives authorization status (Approve/Decline).
  • Captures funds (if authorized).
  • Updates merchant with status.
  • Sends notifications.
• Bank Card Network: Facilitates communication between the Payment Gateway and the customer's bank.
• Customer's Bank: Authorizes or declines the transaction.
• Settlement: Funds are eventually transferred to the merchant's account.

4. Payment Gateway Features:

• Secure Transactions
• Multiple Payment Methods
• Payment Settlement
• Notifications
• Availability
• Scalability

5. Scalability Requirements Estimation:

• Architecture Components
• Scaling
• Reliability
• Security
• Settlement
• Monitoring

6. Security in Payment Gateways:

• Secure Communication: Using TLS 1.2/1.3, HSTS.
• Authorization: OAuth2, token rotation, Role-Based Access Control (RBAC).
• Data Protection: PCI-DSS compliance, encrypting sensitive data (e.g., PAN).
• Fraud Prevention: Using fraud detection engines, velocity checks, behavior analysis, 3D Secure for high-risk transactions.
• Secure Transactions: Validating and sanitizing input, using Web Application Firewalls (WAF), DDoS protection, idempotency for duplicate requests.
• Secrets Management: Securely managing API keys and credentials.
• Logging & Monitoring: Comprehensive logging and real-time monitoring.
• Backup & Disaster Recovery: Ensuring data backup and disaster recovery plans.

7. Technology Stack & Tools:

• Frontend: React, Next.js
• Backend: Node.js, NestJS, Query Framework
• Database: PostgreSQL, Redis (for caching/sessions), Object Storage
• Infrastructure: Kubernetes, AWS
• DevOps: Terraform, Datadog, New Relic
• Security Tools: WAF, DDoS Protection
• Monitoring Tools: Metrics, Alerts
• Other: Kafka (for events), Nginx, Varnish (caching), Akamai, Google CDN

8. Caching, CDN & Performance Optimization:

• Caching: Storing frequently accessed data to reduce load on servers and databases.
  • Types: Browser Cache, CDN Cache, Server-Side Cache (e.g., Redis, Memcached).
  • Cache Invalidation Strategies: Time-based, event-based.
• CDN (Content Delivery Network): Distributing content geographically for faster delivery.
• Performance Optimization Tips: Efficient database indexing, asynchronous processing, optimizing API responses.

9. Reliability, Scalability & Best Practices:

• Reliability Principles: Graceful degradation, fault tolerance.
• Scalability Strategies: Vertical scaling, horizontal scaling, sharding, load balancing.
• Availability Architecture: Using multiple instances, load balancers, and monitoring.
• Reliability Patterns: Retry pattern, circuit breaker, timeout pattern.
• CAP Theorem: Understanding the trade-offs between Consistency, Availability, and Partition Tolerance.
• Reliability Metrics: Availability (uptime), latency.

10. Interview Tips:

• Focus on explaining the core concepts clearly.
• Be prepared to discuss trade-offs in design decisions.
• Understand the different components and their roles.

Source: @abhi_techhub on Instagram

Post Date: August 04, 2026
